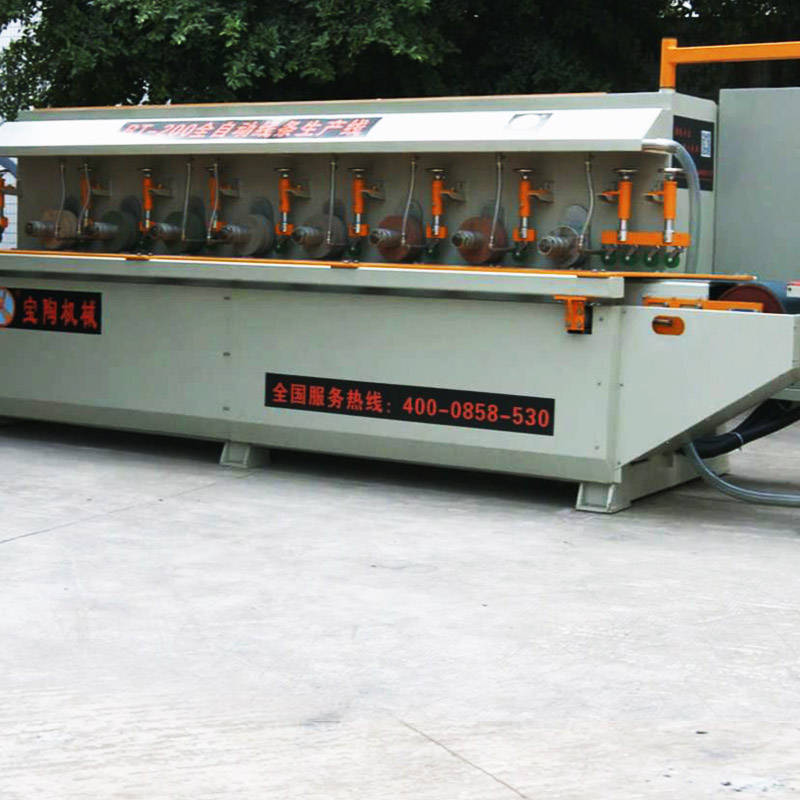

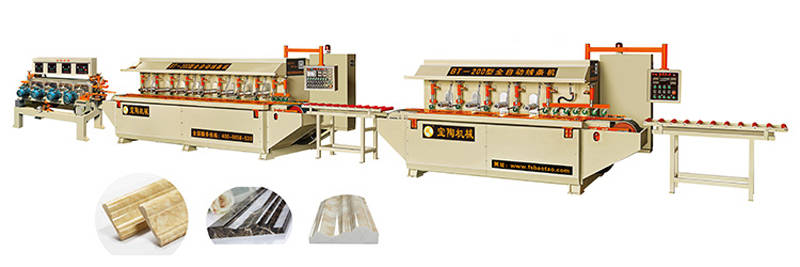

-Description of BT-200 8heads Automatic Stone moulding Line Production Line (3+5)
Stone line polishing machine is a new generation of products, stone, as well as a combined equipment for artificial stone, ceramic line polishing. It is composed of four groups of coarse grinding components (forming) and eight groups of polishing two components. (Can be customized)The product structure is compact, and its operation is stable, forming uses the method of a fixed grinding depth, with the forming wheel (different curves, depending on the requirements), polishing process uses the automatic control of the set amount of feed for automatic compensation to prevent the impact during feeding causing any damage, greatly improving the productivity, bringing you good economic benefits.
-Parameter of BT-200 8heads Automatic Stone moulding Line Production Line (3+5)
No. | Name | Parameter |
1 | Profiling heads | 3 |
2 | Polishing heads | 5 |
3 | Profiling Wheel diameter | 200mm |
4 | Polishing Wheel diameter | 150-250mm |
5 | Max. Cutting width | 200mm |
6 | Max. Cutting thickness | 10-50mm |
7 | Speed of conveyor | 0.2-3m/min |
8 | Total power | 70kw |
9 | Size of machine | 5.8*1.8*2.15m |
10 | Weight | 7500kg |
