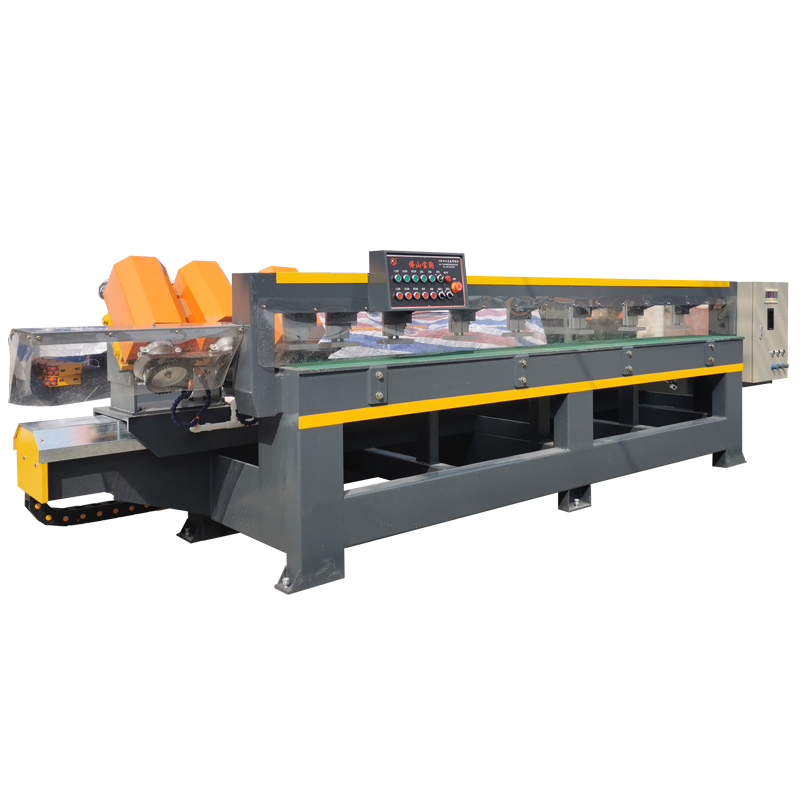

BT-3200 Procelain slab 45degree cutting machine-[NEW]

Founded in 2005,Foshan Bao Tao machinery Equipment Co., Ltd. is a well-known brand manufacturer of various kinds of ceramics, stone processing machinery and equipment research and development, production, sales and after-sales service.
  • product details



1. Product introduction:

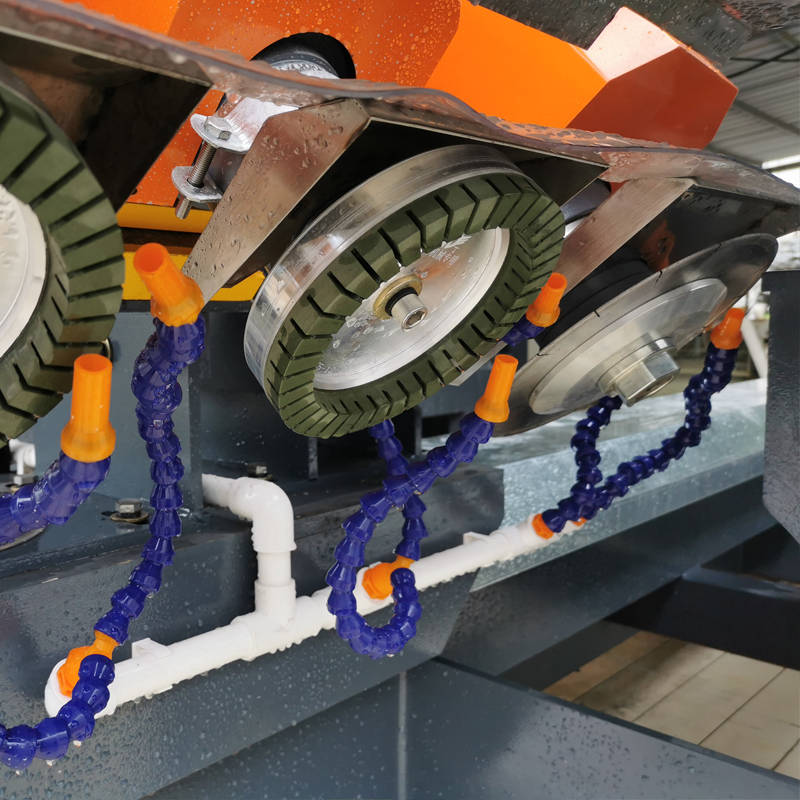

BT3200 Porcelain slab 45degree cutting machine (Upgrad version), the first blade is big cutting blade, the latter two knives are grinding wheel, can be  to achieve the sintered stone or porcelain slab 45 degrees edge effect.The machine uses straight line rail, high precision and flexibility, chamfer slope will not appear size head and collapse edge.The speed can achieve over 2m/min.



2. Main technical parameters:

Model

BT-3200

Maximum processing length

3200mm

Grinding motor powe

3KW*2

Processing thickness

6-20mm

Working speed

1.3-3.5m/min

Water consumption

350L/min

Size

4750*1500*1500mm

Weight

4700KG

Total power

5.5KW

BT3200 Procelain slab 45degree cutting machine-[NEW](图1)
