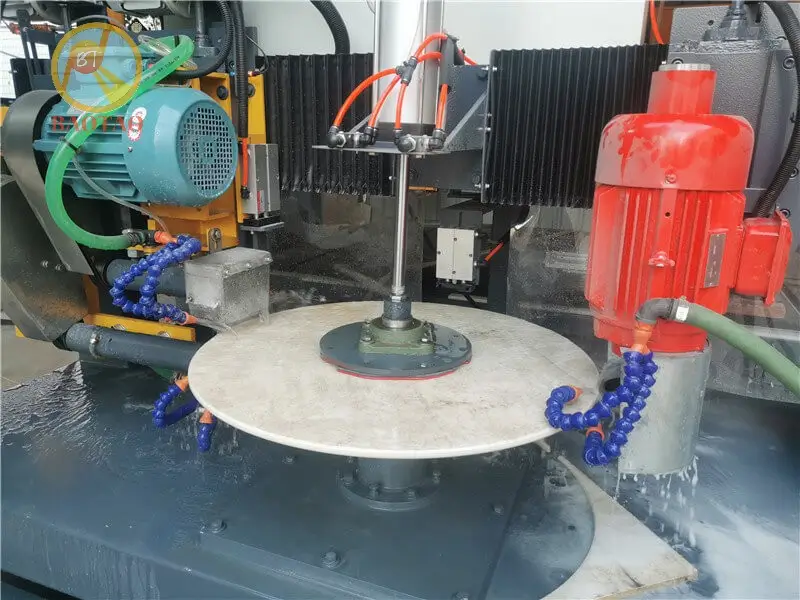

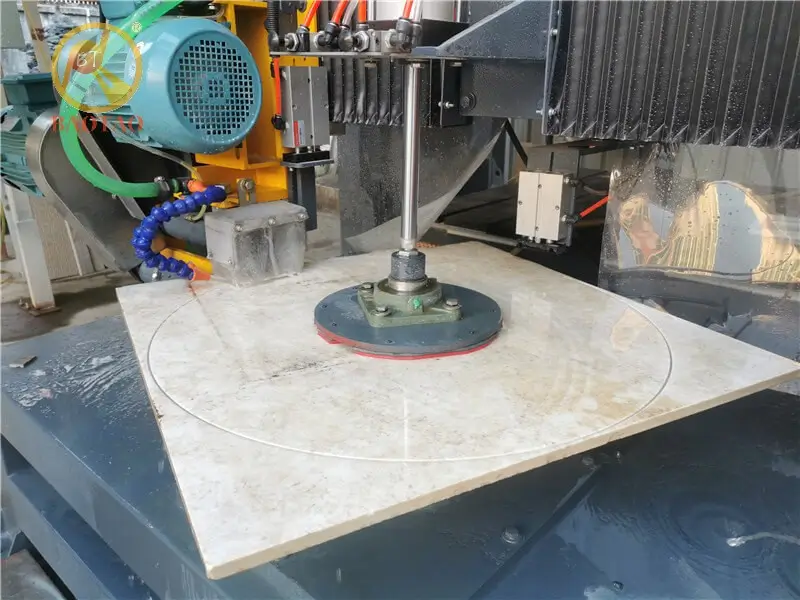

BT900 round table cutting and grinding machine is a professional processing machinery for stone or tiles processing factory.
It is specially designed for stone, ceramic tile and porcelain slab , sintered stone round tables to complete cutting, grinding, chamfer, and polishing at one time.
↓Click Working demo video:
Finished products:
Stone round tables
Sintered stone round dining table
Porcelain round tables.
All types of edge shape: eased, pencil round, bullnose, ogee, bevel...
Machine Parameters:
| processing size | 400~900mm diameter |
| processing thickness | 6~30mm |
| processing speed | 0.5~1 meters per minute |
| main motor power | 3+3+5.5kw |
| water consumption | 350L/min |
| diameter of blade | 130mm |
| diameter of polisher cutter | 140/150mm |
| voltage | 380V/220V |
| machine dimension | 210x170x180cm |
| gross weight | 2000KG |
Machine Features and Structure:

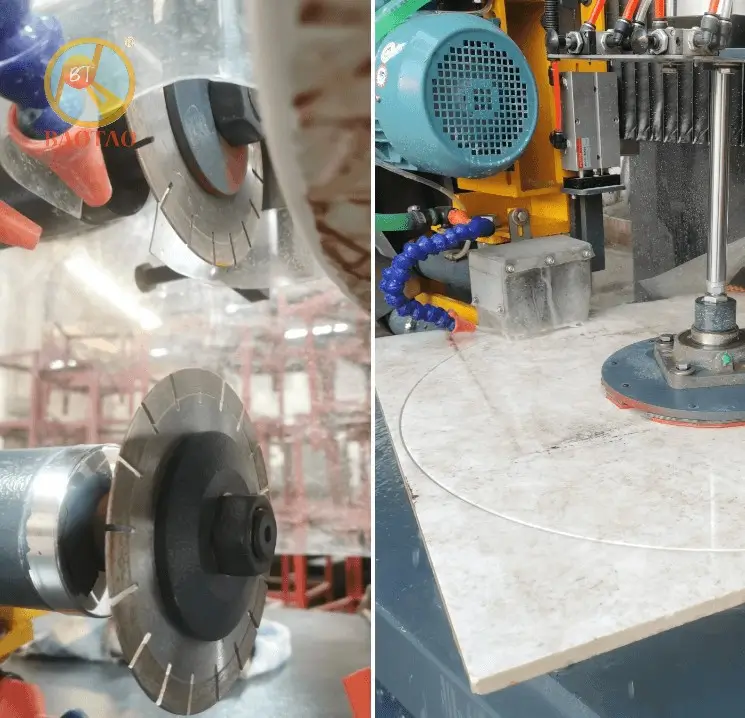

Double blade cutting, up and down blades cut faster.
Profiling or polishing wheels can be put for making different shapes.
Automatically stop after cutting, Then the edging wheel moves forward automatically for the next step of processing.
Table size can be personalized, 900mm, 1500mm etc.

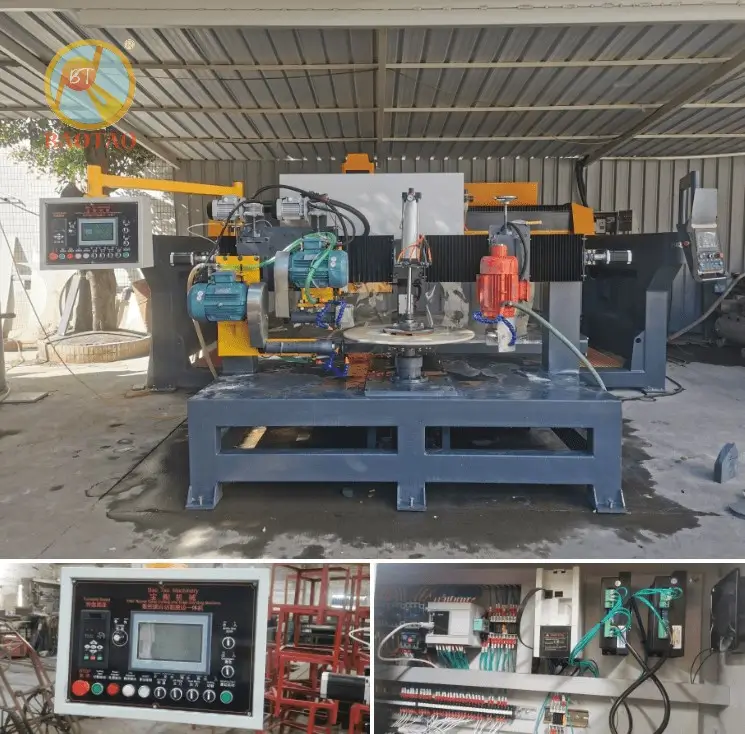

CNC operating panel,Cutting and edge grinding are adjusted through the operation panel to make processing more precise.
Consumables or Accessories for machine:
130mm diamond cutting blade.
Diamond profiling cutter or wheels.
Resin polishing wheels.
Who will need this machine?
Stone processing factory.
Ceramic tile working studio.
Furniture manufactures.
